QSFP56-200G-SR4

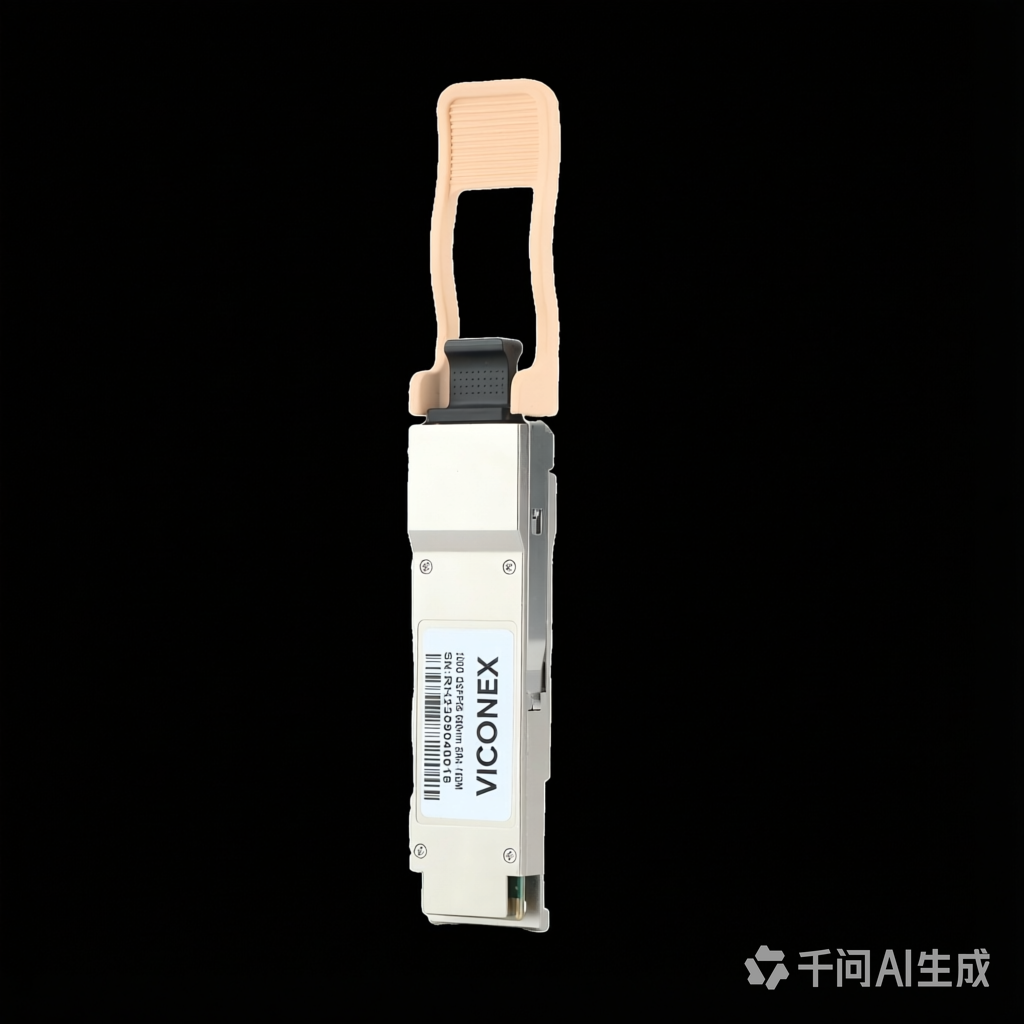

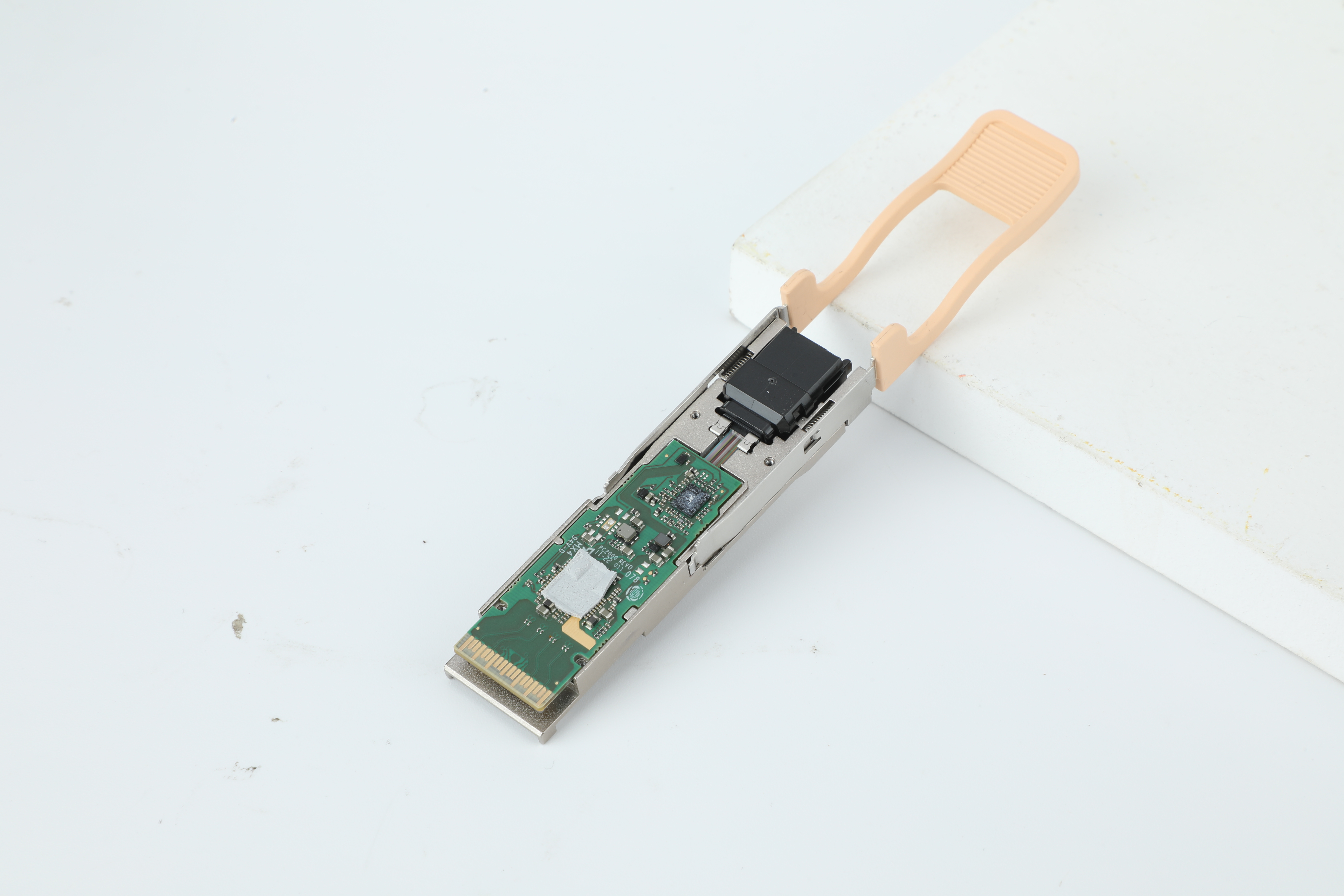

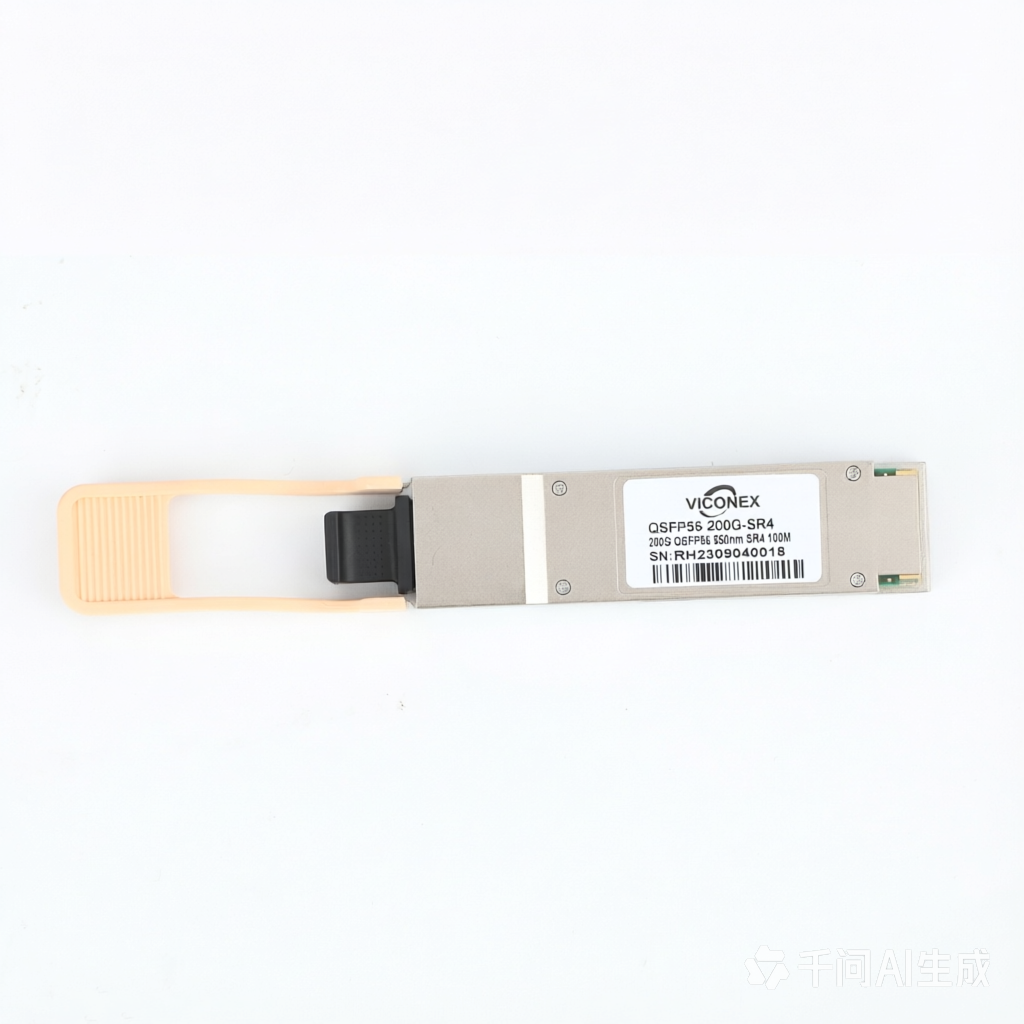

200G QSFP56 SR4 Optical Transceiver
High-speed, hot-pluggable module designed primarily for short-reach multimode fiber (MMF) interconnections within data centers. It supports an aggregate data rate of 200 Gbps and is widely deployed for server-to-switch and switch-to-switch connections in AI, high-Performance Computing (HPC), and cloud environments.
Key Features
- Hot-pluggable OSFP56 form factor
- Data rate 53.125 Gb/s PAM4 per lane
- 4x 50Gbps PAM4 transmitter and PAM4 receiver
- Compliant with QSFP56 MSA, CMIS and IEEE802.3
- Digital diagnostics monitoring
- RoHS compliant
Product Highlights
Category:200G 光模块
Availability:In Stock
Lead Time:1-2 weeks for standard orders
Specifications
Form_factor
QSFP56
Data_rate
200Gbps
Wavelength
850nm
Reach
60m(OM3) to 100m(OM4)
Component
VCSEL+ PIN
Connector
MPO16/APC
Power_consumption
≤5W
Operating_temp
0 to 70C
